Saturday, January 13, 2018

Building A Navy, One Foot (or 30 Centimeters) At A Time, Part IV - The Copies (aka The Good, The Bad, & The Peculiar)

Nichimo's original 30cm range of kits were very popular, so it was inevitable that there would be copies. As to whether or not they were licensed we can only speculate, however their quality varies, which leads to the possibility that at least two suspect, with one being just odd.  The stated scale, where available, will be followed by the actual scale in parenthesis.

Academy's Bismarck (and Tirpitz) - 1/800 (1/836.67)



This kit began appearing in 1988, so it is safe to guess that the model dates from that period if not a little earlier.

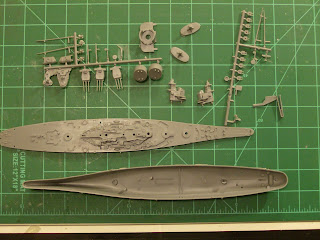

The kit is a very good match to the Nichimo kit, with the hull components being interchangeable.


The rest of the kit looks like a match as well, though the layout on the sprue differs from the Nichimo model. The parts are crisply moulded, in some ways better than the original.

Zhengdefu (also Kitech) USS Missouri - (1/900)


Zhengdefu produced a small series of "30cm" kits, with a number of originals. Not only is this not one of their originals, it is not listed as a 30cm range kit. They are copies of the Nichimo Iowas, but not quite exact.


First, the hulls are close, but the engine and battery mount are moulded directly into the lower hull.


There are other differences, such as the parts having a "softer" appearance. The mast is also different, leaving one to suspect this model was supposed to represent an Iowa in World War II appearance. However, there are no catapults. This model was also sold as the New Jersey.
Also, the box art is interesting, as it is a flipped version of the original Nichimo artwork, with added USAAF P-47D aircraft. Creative for sure, though probably not realistic.
It should be noted that  Zhengdefu appears to have also copied the Nichimo Bismarck and Enterprise.

Yong He (?) "Hyuga" - Read On


This kit is a conundrum. The box art is a copy of the original Nichimo 30cm Hyuga, meaning the model should be 1/720 scale. It is even numbered the same as the Nichimo kit.
Trouble is, this isn't the Hyuga. In fact, it isn't even an Ise at all.


The enclosed model is apparently a Kongo, and the same scale as the Nichimo kit, 1/732.


It is not, however, a copy of the Nichimo kit. It appears to be a poor copy inspired by the Nichimo Kongo. The moulding is not great, the detail is more like early plastic kits. While this model is motorized, there were serious shortcuts, one being a plastic drive shaft (in my opinion that is just asking for trouble).
This isn't a case of the the plastic components being placed into the wrong box. The instructions show that this is what it was meant to be.


In short, not the Hyuga. I know of only one more of Yong He 30cm range kit, but I would be hesitant to buy it, even for an oddity.

In the next part, we'll look at some slightly less common kits that by virtue of their size fall within this range. For now, I am going to take a break from writing and actually work on a model or two.
I shan't be gone long.









Thursday, January 11, 2018

Building A Navy, One Foot (or 30 Centimeters) At A Time, Part III - Nichimo's 30cm Series

The HIJMS (IJN) Haruna, the only one of these kits for which I have the old style box art
With the arrival of the Mabuchi 130 type motor, the door was open to more motorized model ships, the bulk of which would come from Japan.
The Japanese plastic model kit industry started off slightly behind the American one. By the late 1950's, companies like Sanwa would begin manufacturing model ships of ever increasing quality. By the late 1960's, the Japanese companies were already catching up with the rest of the world in plastic kits.
One company in particular produced a very nice range of 30 centimeter kits, that being Nichimo.
Before I go any further, however, I think the time has come to clear up a misconception.
30 centimeters is not 12 inches.
It is commonplace for those using the old Imperial system of measurements to round things to the nearest tenth. For us, that means that 1" generally equals 25mm. But that's not correct. 1" equals 25.4mm, and this gets compound. So, we tend to think of 12" as 300mm, or 30cm, when in fact it is 304.8mm, or 30.48cm.
30cm actually equals 11.81".
In small scale model ships, that difference makes a difference.
Back to Nichimo.
The company began production in 1951, and by the 1960's was turning out dozens of kits. Their most famous kit is the huge 1/200 Yamato. Sadly, Nichimo appears to have folded in 2013. As for the disposition of their dies, it is anyones guess, though hopefully they will end up being re-issued.
Starting in the early 1970's, Nichimo began a series of 30cm sized motorized model ships. This was in the face of a model building world that was turning ever increasingly to solid scales. In Japan, 1/700 scale was emerging as a force, and soon would become the choice for many ship hobbyist. Nichimo followed a trend that had started earlier with companies like Sanwa, where the lower hull below the waterline was molded separately in red, meaning that if the builder chose not to motorize the model they could, in fact, build them as static waterline models.
Nichimo persisted with their 30cm range, tooling the last dies in the early 1980's.
The list that follows is far from complete, being my personal collection. My interest is in the classes, with one ship of each being represented, unless there were some differences vast enough to warrant another vessel. Missing from my collection at the moment are the Shokaku, Shinano, Enterprise, and Nimitz. It is my hope that I will be able to obtain these.
Another item of note. These last Nichimo 30cm kits were issued in what can only be termed as generic boxes, with the same box art. Also, the Mabuchi FA-130 motors (the current production available in their home market of Japan) are not included, though the motor mount and fittings are, meaning that all one had to do was simply drop a motor in.
Before we begin the list, though, I would just like to say that these models were nicely engineered, though not always accurate. The motor mount was ingeniously designed so as to save the builder the trouble (might I add heartache) of having to deal with wiring. The models themselves are nicely detailed considering that they are really not much more than "toys".  Where they fail is in accuracy and proportion, which should not be a detriment for enjoying these quirky kits.
The scales are based upon each kit being assumed to be accurately 30cm in length. Year is for when the first kit was released. Additional data courtesy of Scalemates.com.

Yamato - 1/853.33, 1974



This model looks the part, though there are obviously some proportion problems. Appears to be the ship mid to late war build. This kit shows the engine mount (right) and stand (left), which are basically the same for the series.

Nagato - 1/749.8, 1974



This model appears slightly better proportioned than their Yamato class.

Ise - 1/720, 1975



The flight deck appears to be strictly for the Ise (my example is the Hyuga). Also the only one in a slightly more common scale, 1/720.  Of note is the deck on the aforementioned flight deck.

Kongo - 1/732, 1980



My example is the Haruna, but it is hard to say exactly which vessel the kit represents, as there were differences between each, mainly in the tripods and "pagoda".

Bismarck - 1/836.67,  1974



Another member from the initial group that Nichimo produced. As my example is only the lead ship of the class, I am unaware if Nichimo made an attempt to make their Tirpitz different. Be that as it may, this kit looks the role rather well.

King George V - 1/757,  1977



Sold also as the Prince of Wales, though not the others in the class. Appears to be based upon an early war build. Also looks the part, though a secondary turret had to be removed to make room for the power switch.

Iowa - 1/900,  1976


When this kit was initially produced, it was sold as the Missouri. My example is the New Jersey, and appears to show the ship during her Vietnam War appearance, lacking the catapults. However, of all the kits, this one has the worse problems with proportion. It is simply too beamy, to the point where it might make a good starting point for conversion to a South Dakota in a larger scale. The secondary weapons also appear out of scale, while the superstructure appears too thick. Also sold as the proposed "Phase II" (labeled by Nichimo "Faces II") variant for both the Iowa and New Jersey, with the flight deck aft.

In the next part, we'll examine some clones.





Wednesday, January 10, 2018

Building A Navy, One Foot (or 30 Centimeters) At A Time, Part II - The Game Changing Motor

Before we go on to the next batch of models, I feel it is important to cover an important topic, motive power.
As mentioned in Part I, the Lindberg models relied mostly on an electric motor that the builder had to make themselves. It was a bit complicated for the novice, though many did so with no problems.
This motor was a single magnet unit, and could run reliably enough on 3 volts. Still, the simple fact that it had to be made by the hobbyist was a slight, though not insurmountable, problem.
Other companies were relying on other small, low voltage electric motors for their kits. The bulk of these motors came from Japan. Like the Lindberg kit motors, they were single magnet and low voltage. Some had twin magnets and were were a bit stronger.

3 VDC motor, probably a TKK, from an ITC model

They were still a little weak, however, and not as efficient as they could be.
Enter the Mabuchi F series, and the 130

A modern 130 type motor

The little 130 class motor had two magnets, could run on as little as 1.5 volts DC,  was smaller and lighter, and was inexpensive to manufacture. By the late 1960's, it was becoming ubiquitous.

Comparison between new and old

The Mabuchi 130 was also more reliable than the previous motors, with lower draw, so not only allowing for increased battery life, but allowing for smaller batteries to be used. With the arrival of alkaline batteries, it meant that model ships could now run for extended periods of time.

The stage was set for the next revolution in small electric powered model ships.

Tuesday, January 9, 2018

Building A Navy, One Foot (or 30 Centimeters) At A Time, Part I - The Lindberg Kits

Lindberg's Contributions

The first kits we'll discuss are those of the American Lindberg company. These started appearing in the late 1950's, and as initially sold, were intended to be motorized. All are almost exactly 12" (30.5 cm) in length.
This list is approximately the order in which they were released. All have been in production up until recently, and the company that currently holds the dies, Round2, re-issues them from time to time.  The recent production runs are no longer motorized, but the kit components to make them thus are still included. They are notable by their not being mentioned in the instructions. Like many Lindberg kits from this era, the details are sometimes a little lacking or sometimes spurious, such as the oversized and somewhat inaccurate panel lines.
A note about the motors that were sold with the kits. These were in kit form, with an off axis bar magnet and an armature that you had to wind (Speaking from experience, I was never able to get one to work. However, I was also fairly young).
All models are from my personal collection, some with older style boxes. Stated scale will be included, along with corrected scale in parentheses.

Q-Ship 1/390 (?)


Possibly the oldest of the group. When this kit was reintroduced by Round2 it had been out of production for over four decades. It represents a World War II era decoy (Q) ship, possibly the USS Atik. However, it is very similar to any small steamer built from 1910 on to about 1941, and in fact with some modifications can represent smaller or larger ships. However, the deep hull really works better for its stated scale or smaller vessels.



US Navy Fleet Tanker 1/525 (actually 1/501)


Another old Lindberg kit that hadn't seen the light of day in decades. This one has a slightly easier to work with one piece hull, and looks the part well enough. However, it is either a Kennebec class (at the model's stated 1/525) or a Cimarron class (at 1/501). As the kit was originally offered as the USS Neches, a Cimarron, it's hard to tell, but I am certain that measuring the beam could determine which is right.
Incidentally, might also make a good basis for some escort carrier conversions.

( UPDATE - 6 Sept 2020
It has been brought to my attention that the values I presented here are in error. First, the kit most likely represents a Kennebec derived design, making the kit closer to 1/501. The Cimarron's were longer vessels, if outwardly similar. Second, the USS Neches was a Mattaponi class, a sub-group of the Kennebec class. I apologize for the sloppy research where this was concerned. I'd like to thank Davidp (via eBay) for informing me of the mistakes. RL)



USS Shangri-La 1/900 (1/888)


This model represents a post SCB-125 modernized Essex class carrier and has been sold as various ships, whether accurate or not. On this kit, we see the introduction of a detachable centerboard or false keel designed to keep the ship upright and afloat. The air wing is truly 1950's aircraft, including the hard to miss F7U Cutlass and F4D Skyray. Later incarnations of this kit included the same air wing, plus a Mercury capsule (really out of scale for the model). Also, the model was sold as the Antietam, which never received the full modernizations.


(Note - tiny Mercury capsule just above center)


USS Missouri 1/900 (1/887)


Back to a one piece hull. Not a bad interpretation of a World War II era Iowa (though each ship had differences). However, I've always thought that the turrets were a little undersized, while the tower and second smokestack were a little short. When built, however, these are not too much a detraction. Rather nice looking hull.



USS DeLong 1/300  (1/306)


One of only two Rudderow class destroyer escorts made as an injection molded kit (the other one was a smaller kit, also from Lindberg). Like most of Lindberg's kits, the panel lines are wrong, and the hull looks rather boxy (a concession to its being a running model), bur from the deck up is actually a notch above many of their other kits. It has been sold under several different names. Also, the false keel makes a return, albeit deeper.



USS Manchester 1/600 (1/608)


A Cleveland class light cruiser. One piece hull, also requiring the false keel/centerboard. Like the Lindberg Rudderow DE's, also a fairly boxy hull. This model has never really looked right to me, though I haven't taken the time to properly compare it to accurate drawings. It includes a short false keel. Also, makes a good starting point for an Independence class light aircraft carrier.



The Also-Rans

The two following kits came a few years after the previous kits, around 1967, and while still not the best (the panel lines, for instance) were fairly decent looking models.
However, they were never sold as motorized.
A look at both kits seems to indicate that Lindberg may have actually been planning to sell them that way, as both models come with one oversized screw and hints of shaft openings. Around the same time that these models were released, Lindberg released a series of smaller model warships that were much simpler and bordering on crude (a subject for later). The two larger models were really a leap beyond them.

DKM Scharnhorst 1/762 (1/771)


This kit captures the lines of the Scharnhorst rather well. Some details are a little rough, as typical, but overall, it really builds up nicely. With some work, could be converted into the Gneisenau. Main turrets appear a little off.



HMS King George V 1/750 (1/743)



To my knowledge, this kit was always sold as the KGV, whilst its smaller stable mate, released at the same time, was sold variously as the "Prince of Wales" and the "Duke of York". This kit represents the KGV after the aircraft were removed. This model might have been a better candidate for motorizing than the Scharnhorst, due to the hull being slightly deeper. However, the hull of Lindberg Iowa's were also fairly shallow, so like everything with regards to these two last kits, it is only speculation.



That covers the American manufactured kits for our small fleet. Next, we'll look at one company's amazing output and its models of similar size.

Monday, January 8, 2018

Building A Navy, One Foot (or 30 Centimeters) At A Time - Introduction

The Genesis of A Small Idea -

Like many maritime historians and hobbyist I know, I became interested in things nautical via models. Being from a working class and poor background meant that my model building was restricted to smaller models, the ones usually found at discount stores. Most of these were on the small side, and many could be motorized.
By small, I mean usually between 10" to 14" (25.4 to 35.6 cm).
In short, small.

In the world of model aeronautics, there is a category known as "Peanut", or various other small nuts. These are small models, with wingspans between 8" to 14" (20.3 to 35.6 cm). Most are free-flight, but with the advent of miniature RC, very small scale controlled electric flight is now possible.
What I am think is the model ship equivalent for both free running and RC models. Very small models ships have a number of advantages over small aircraft, such as the ability to handle a little more weight for things such as batteries.
What we need is to apply the Peanut philosophy to running model ships.
Smaller model ships are ideal for smaller bodies of water, such as pools or ponds. They are a lot cheaper, a lot easier to store, and do not need to be as detailed as larger models (though you can super detail as you desire).

What this series of articles is going to concentrate on are a few smaller, long lived kits, with a focus on those in the 30cm and 12" range.  A good number of these models leave much to be desired as accurate or detailed scaled models, but for simply having fun, most are superb.
These reviews are not going to be very critical, though I might add a few notes about proper scales and appearances, or pointing out obvious problems. This is a lighthearted approach, for fun.
I suspect, however, that my tendency towards historic information will creep in, as I am a creature of habit.
So, let's have some fun, shall we?

Saturday, January 6, 2018

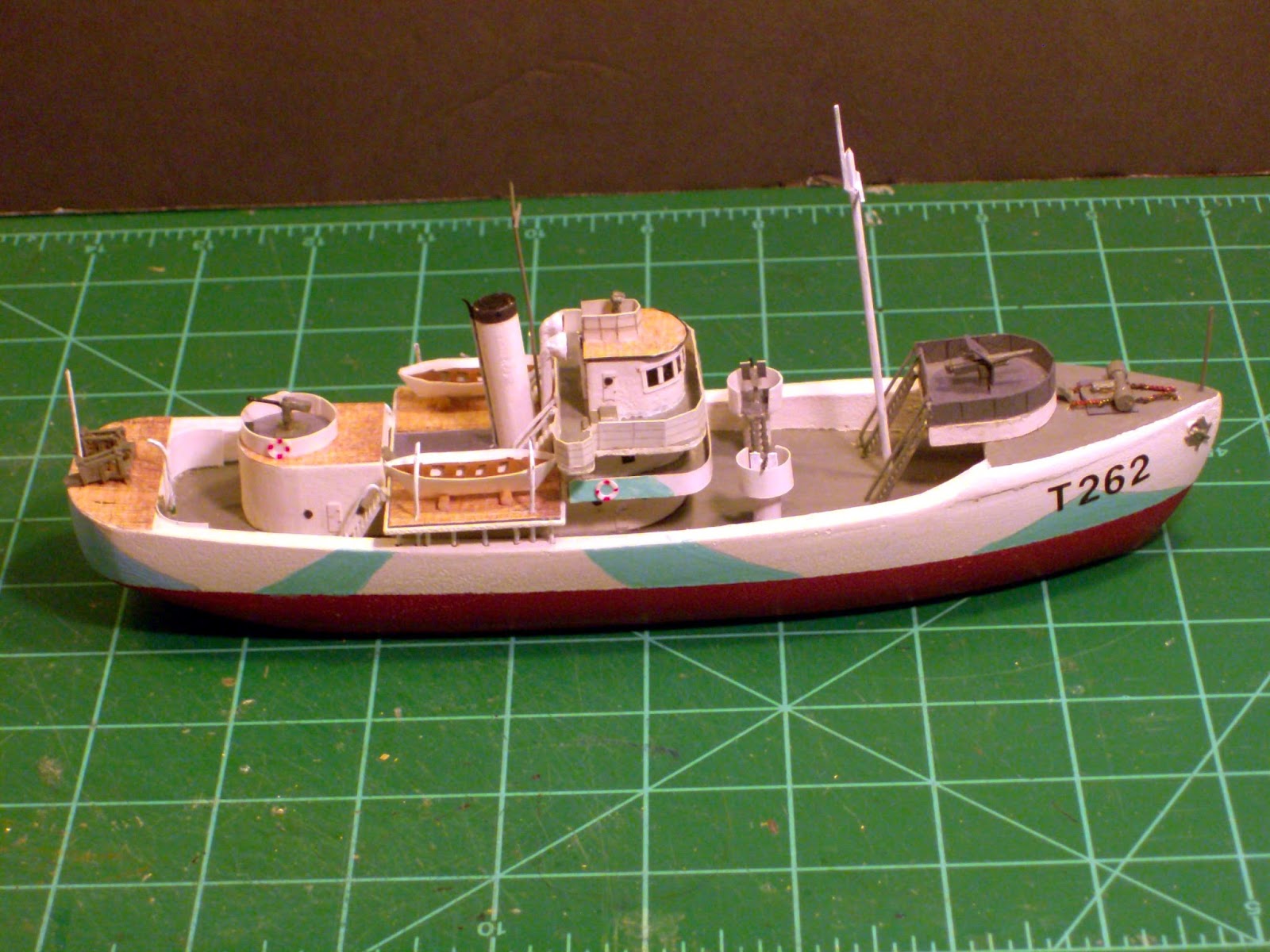

The HMT Chinook, A Freelance Admiralty Trawler In 1/240 Scale

From a simple wooden kit, this armed trawler emerged.

When I began my slow creep back into model warships, and trying to decide on interesting subjects, I rediscovered the Royal Navy Admiralty trawlers. These ships were built in scores during both World Wars, and were based upon readily available designs already being produced at smaller shipyards. This allowed for rapid construction, and many were built.
Initially, I thought about using one of the commercially available plastic kits, but soon put the idea aside.
A couple of months back, I picked up a very inexpensive wooden model (toy, really) tugboat. As a tug, its shape wasn't terrible, though most of the parts were very simple, and dare I say, crude. Still, I felt that there was potential here.
When I did decide to begin construction, however, my mind wondered back to the Admiralty trawlers.
As a result, I decided that I would build this model up as a test bed. In shape and proportion, it is simply wrong as an armed trawler, possessing too much beam. However, in profile, it looked pleasing enough above the waterline that I decided to proceed.
In the end, the resulting model borrows heavily from the Fish-class trawlers that the Royal Navy used during the Second World War, and scales out to roughly 1/240 scale. It is painted in Western Approaches camouflage. The model allowed me to rebuild some of my skills and, more to the point, regain my confidence.
It is still a bit rough, mind you. The sides are very thick, there is no screw nor rudder, it still needs to be sealed, and the motor mount attached. But it does appear as though it is ready to patrol the local ponds and pools in pursuit of the dreaded U-boat menace.
